| Type/Name | Volume | Feed Rate/Handling Capacity | Required Crude Amount |
| Single-axis mixed reactor (F1001) | NA | 150kg/h | Normally500kg |
| Static Mixer (S1001) | NA | 150kg/h | Normally500kg |
| Twin screw extruder (F1002) | NA | 150kg/h | Normally500kg |
| Automatic packing machine (F1003) | NA | 150kg/h | Normally500kg |

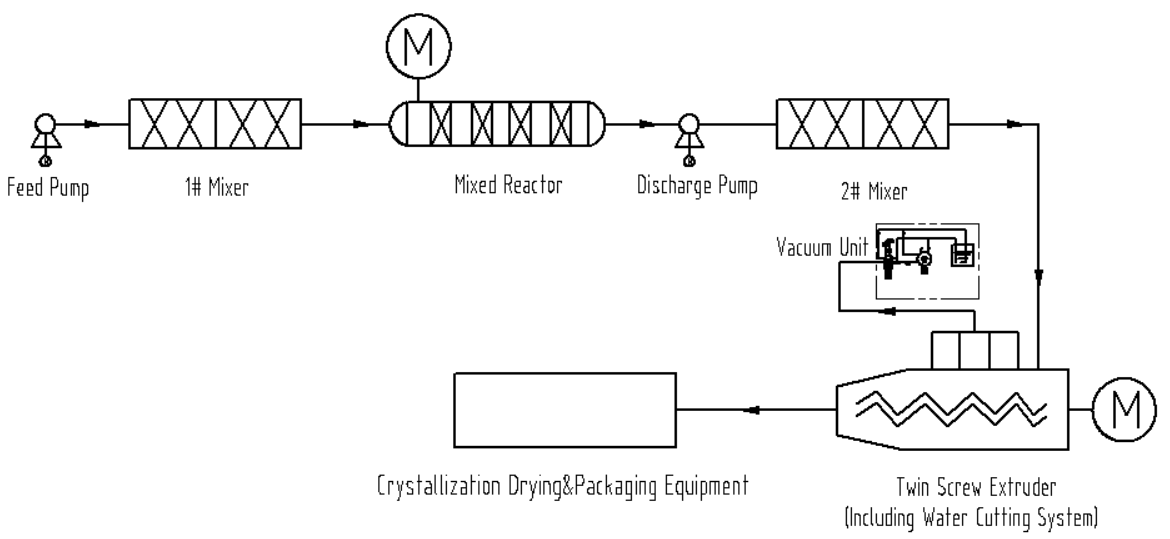

The aggregation system can realize the process verification of customer materials such as pre-melting, premix, pre-polymerization, final polymerization, devolatilization, extrusion granulation, drying, heat treatment and packaging under actual production conditions by adjusting and controlling the material residence time, operating temperature, operating pressure, flow velocity, speed of the related dynamic equipment, start and stop and other process parameters. Widely used in fine chemical, food, medicine, environmental protection and other industries.
The aggregation system is based on customer requirements and product characteristics. Can provide customized system related services:
Rotating
parts of mixed reaction equipment: scraper type,
screw belt type, other customized
types
Type of granulation equipment: water ring granulation, underwater granulation, strip granulation, etc
Material selection: 304/316L/2205/ Hastelloy etc
Temperature control method /Continuous feed/discharge is available
Multistage
series-parallel combination aggregation system is
available for configuration
